Regular price$900.00
/

Size

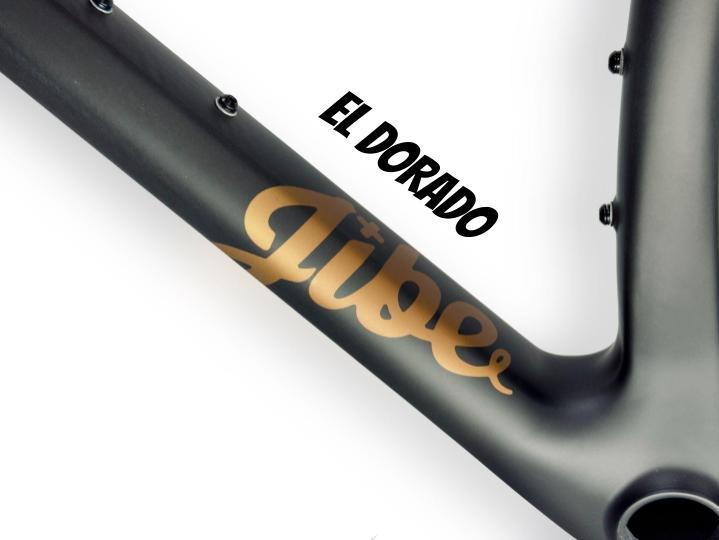

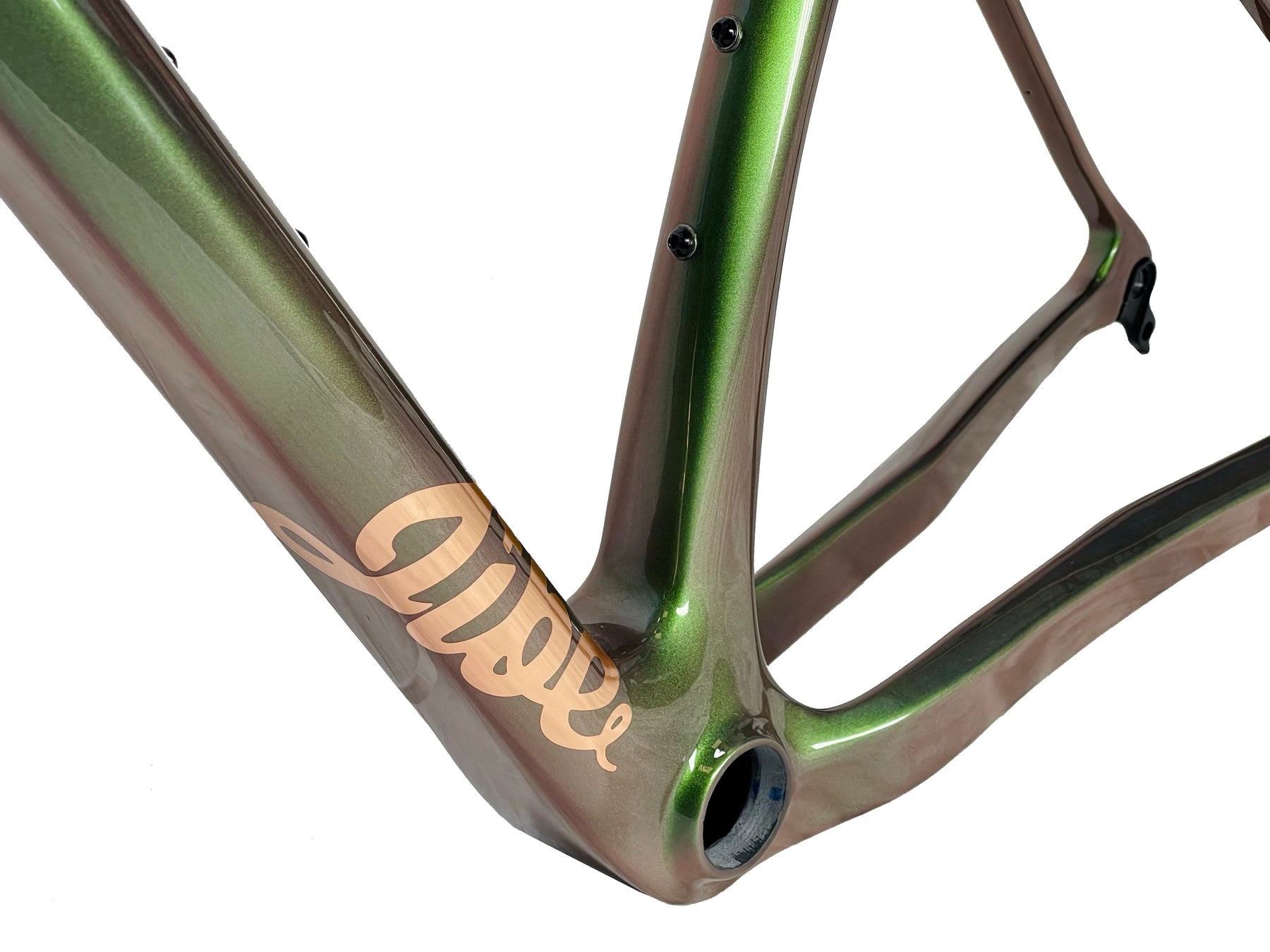

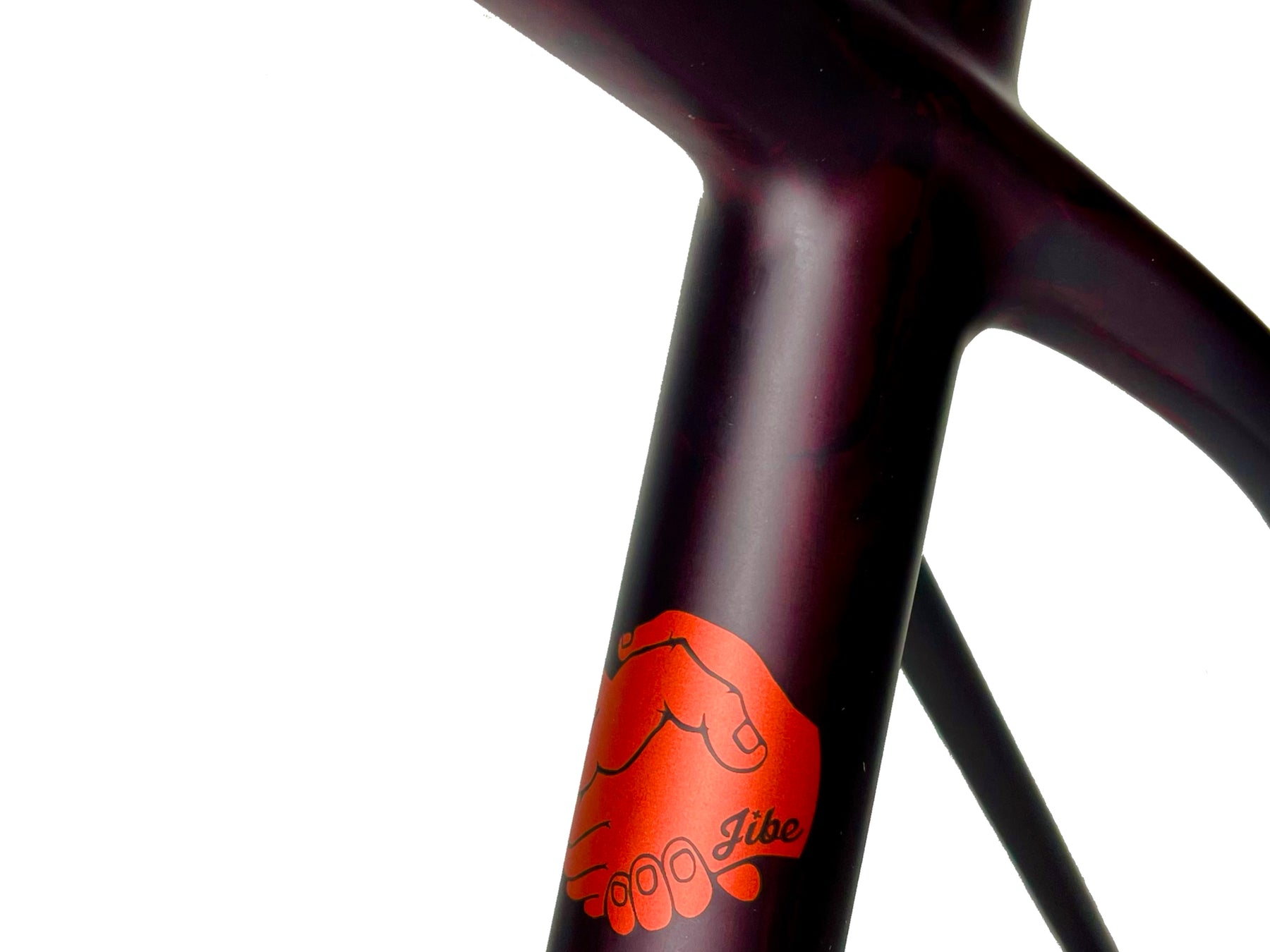

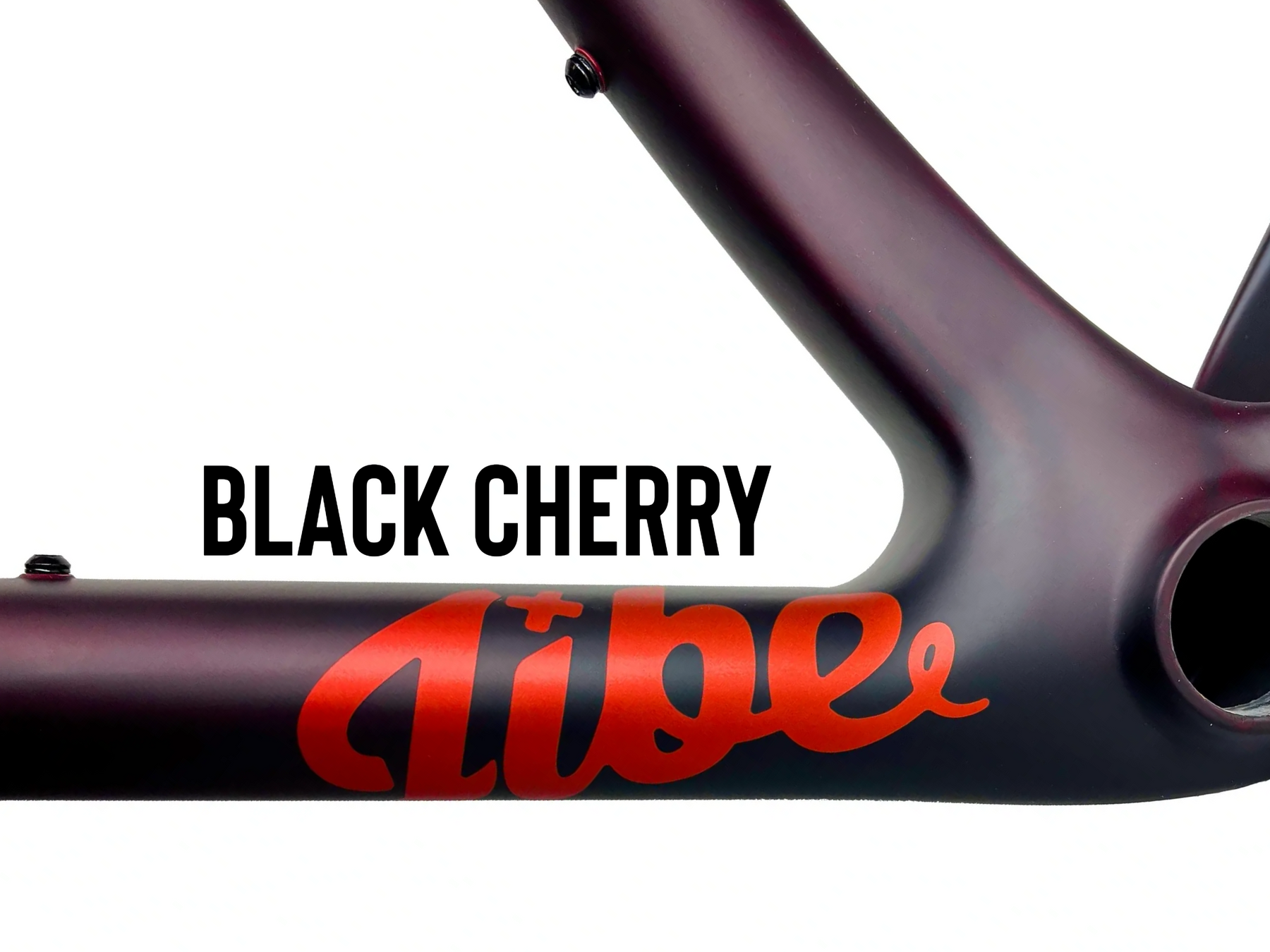

Color
  • In stock, ready to ship
  • Backordered, shipping soon

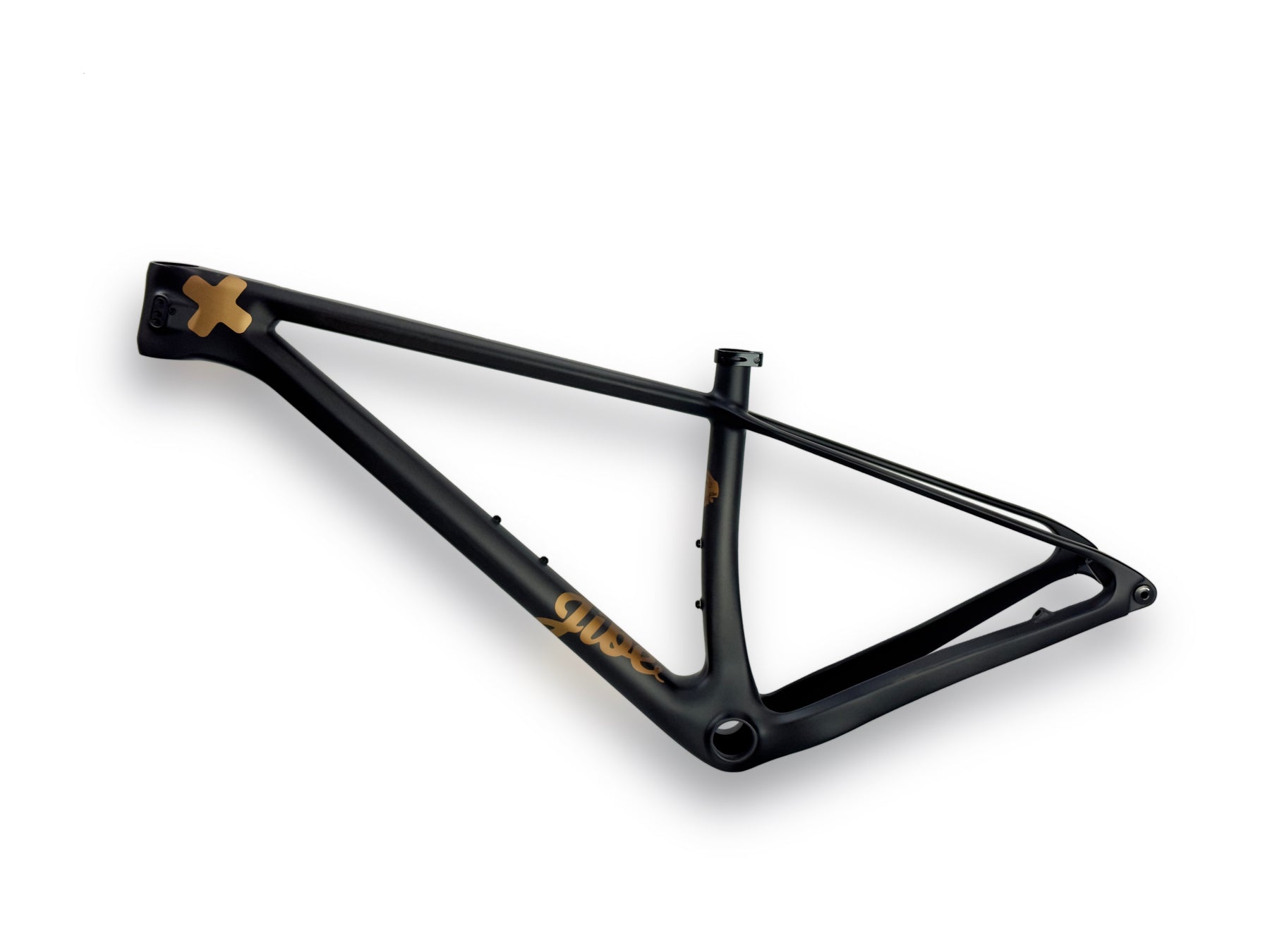

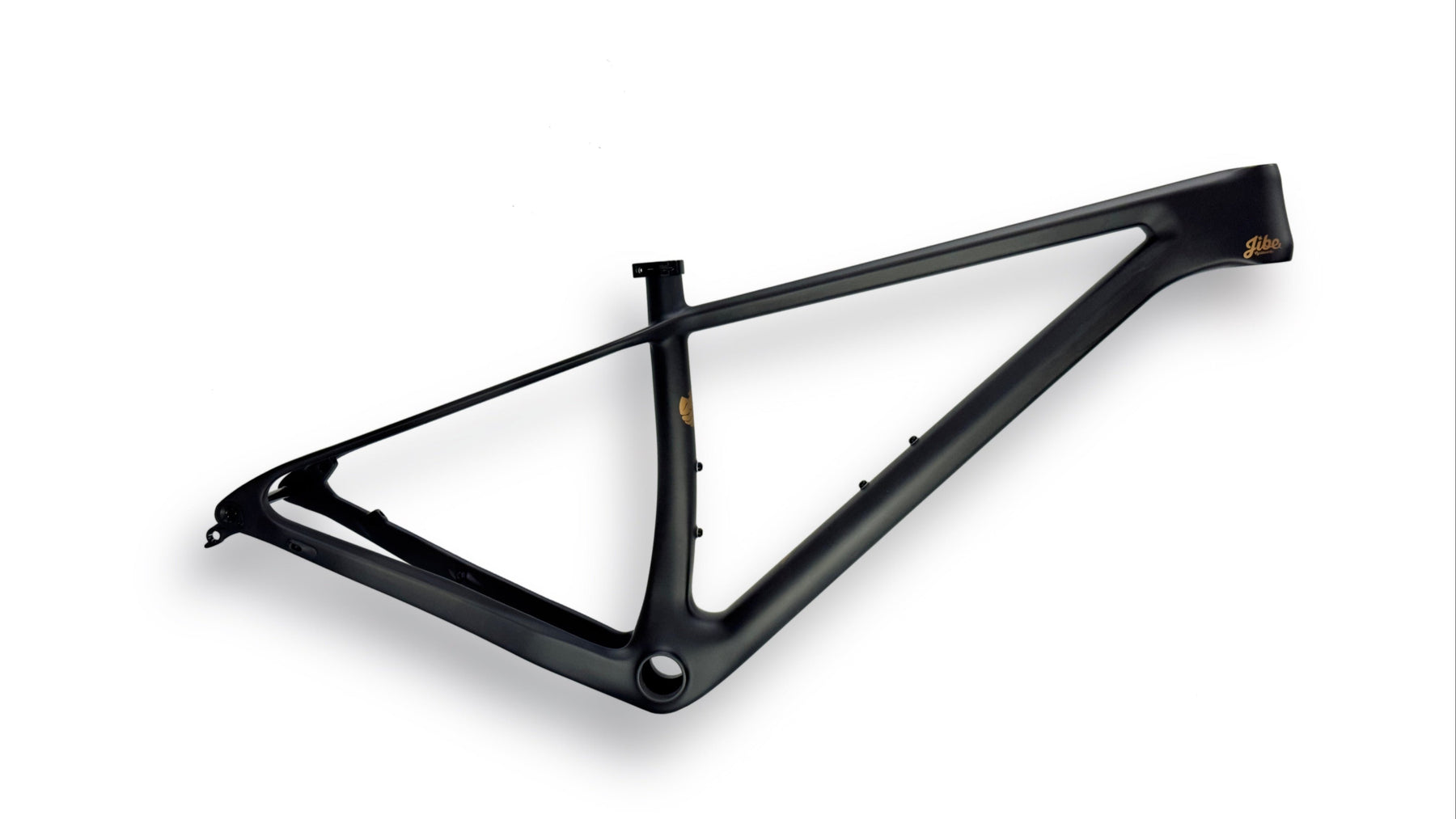

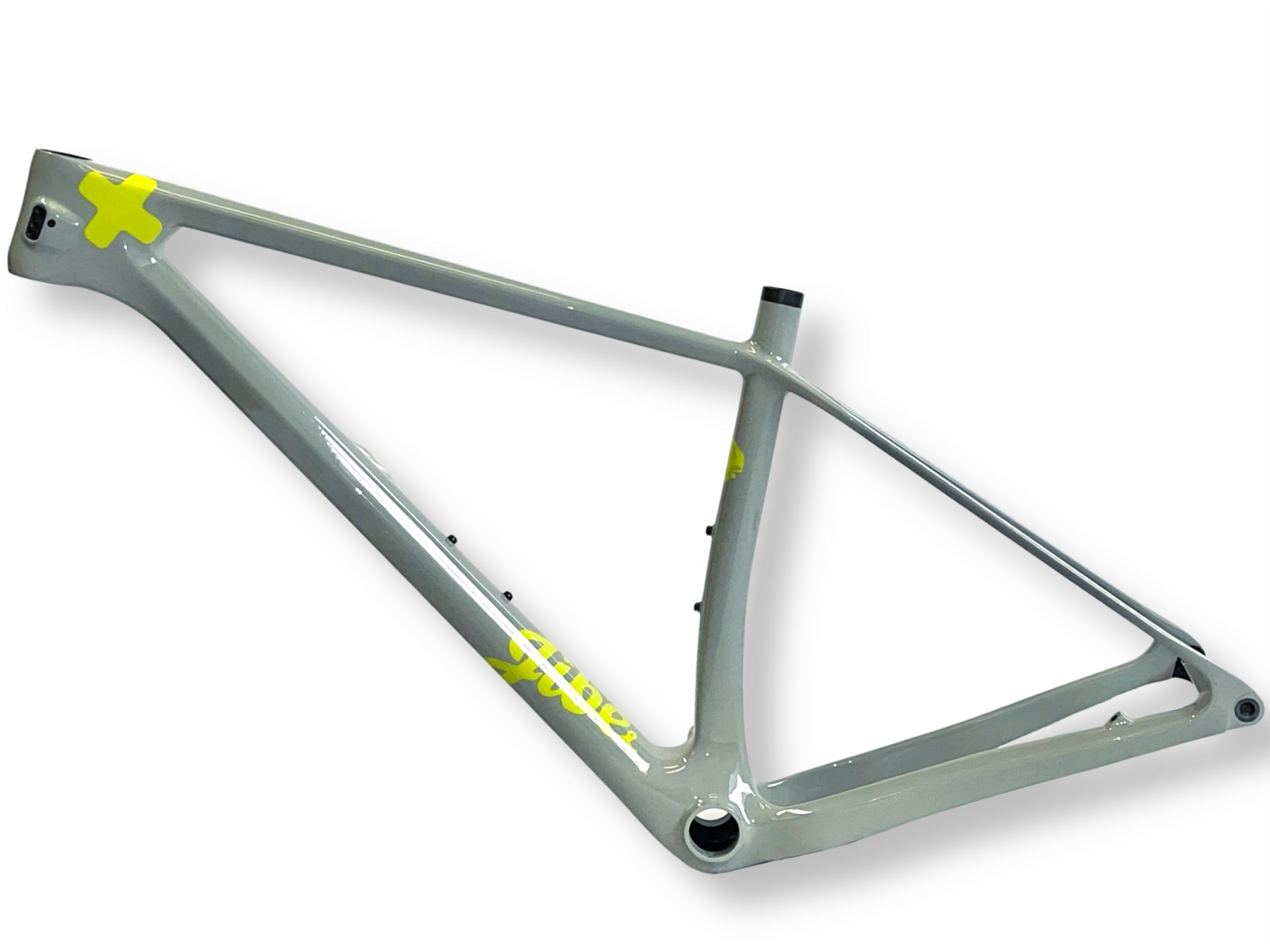

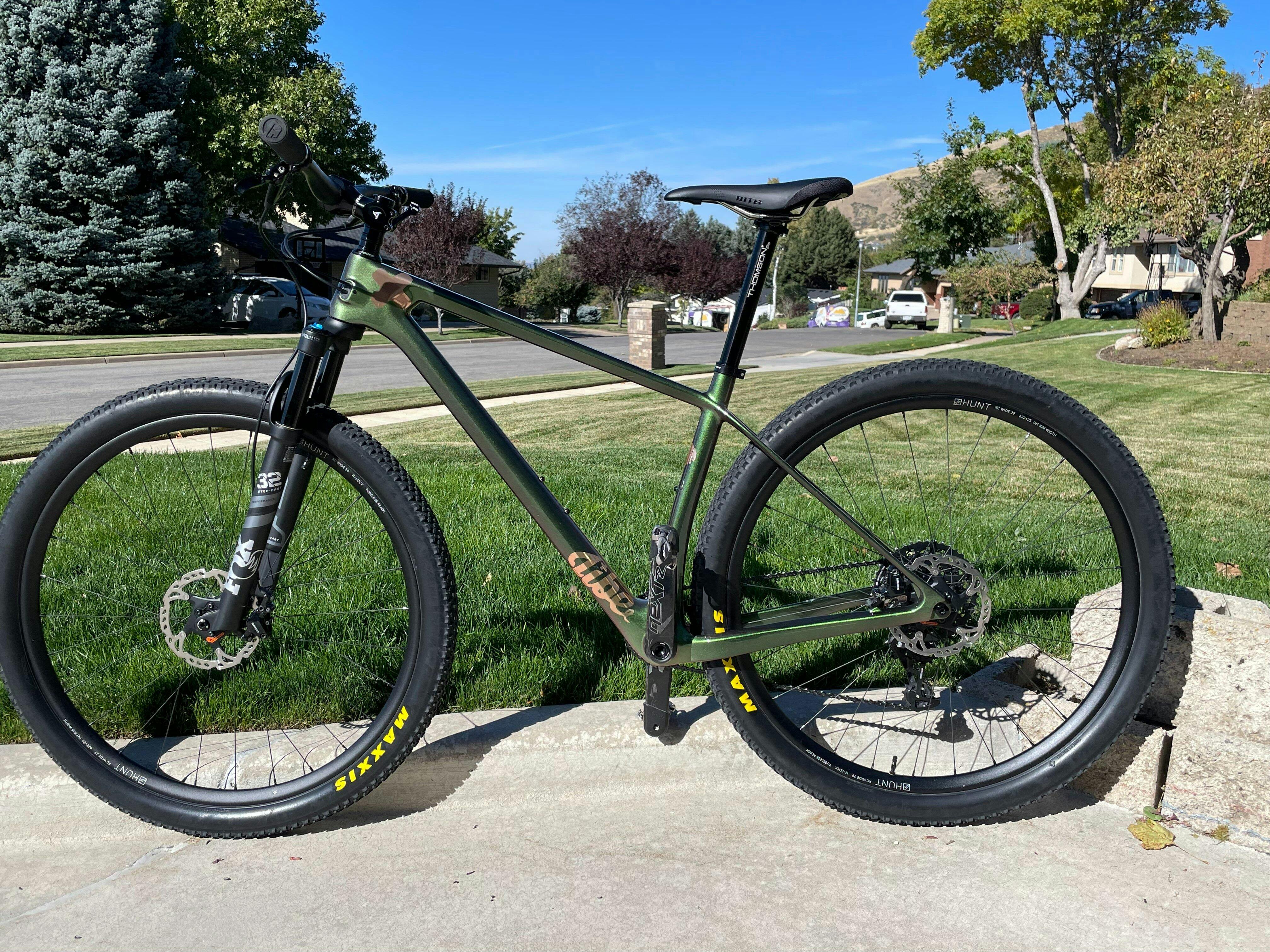

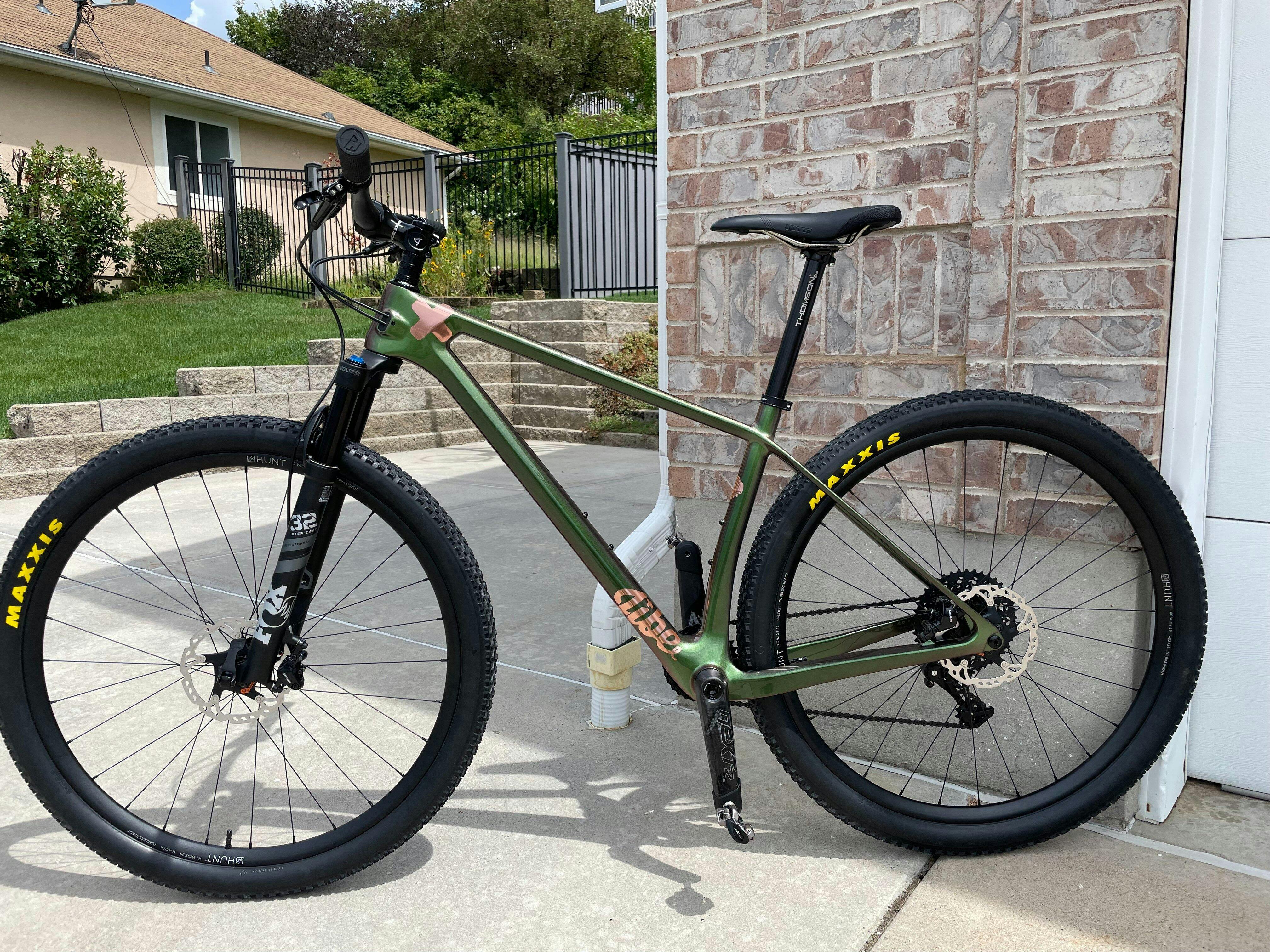

Jibe XCHT Frame Includes:
  • Jibe carbon XCHT frame
  • Rear thru-axle
  • FSA Orbit integrated headset
  • Black alloy seat post collar
  • Silver alloy threaded brake post inserts
  • Pre-installed waterbottle bolts
  • Pre-installed rear derailleur hanger
  • Rubber stopper inserts and cable guides
Frame Specifications:
    • Press fit 90 Bottom Bracket
    • Frame material: Full Carbon Fiber
    • Internal cable routing (RB/DP/RD)
    • E-type chain guide mount
    • Max Tire: 29" x 2.5
    • Boost 148mm O.L.D. x 12mm Thru axle
    • Frame weight: 2.5 lbs (size medium)
    • Chain line: Boost 52mm chain line, 168mm Q-Factor
    • Head tube: Integrated Tapered 1-1/8" to 1-1/2"
    • Front fork travel: 100mm/120mm
    • Recommended fork offset: 51mm
    • Rear brake: 160mm post mount, 180mm max rotor
    • Seat post: 30.9mm
    FRAME WAR­RAN­TY-
    Lifetime Guar­an­tee – Jibe Bikes are guar­an­teed to be free of defects in mate­ri­als and work­man­ship for the orig­i­nal own­er. Jibe Cycleworks will either repair or replace at its dis­cre­tion any part it deter­mines to be defec­tive. This war­ran­ty is non-trans­fer­able.
    NO FAULT REPLACEMENT -
    Should your Jibe prod­uct be involved in a crash or oth­er non-war­ran­ty sit­u­a­tion, Jibe Cycleworks will make replace­ment parts avail­able at a min­i­mum charge to the orig­i­nal own­er for the life of the prod­uct. Jibe Cycleworks does this at its sole dis­cre­tion and reserves the right to refuse this service.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    FRAME WARRANTY

    Lifetime Guarantee - Jibe Bikes are guar­an­teed to be free of defects in mate­ri­als and work­man­ship for the lifetime of the frame, for the orig­i­nal own­er. Jibe Cycleworks will either repair or replace at its dis­cre­tion any part it deter­mines to be defec­tive. This war­ran­ty is non-trans­fer­able

    No Fault Replacement

    Should your Jibe Bike be involved in a crash or oth­er non-war­ran­ty sit­u­a­tion, Jibe Cycleworks will make replace­ment parts avail­able at a min­i­mum charge to the orig­i­nal own­er for the life of the prod­uct. Jibe Cycleworks does this at its sole dis­cre­tion and reserves the right to refuse this service.

    FREE MAINTENANCE

    Buy a Jibe Bike and get 1 year of free routine service/maintenance.

    Service and maintenance is performed at Jibe Cycleworks in SLC, Utah.

    *Parts not included*

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    M
    Matt S.
    XCHT Frame

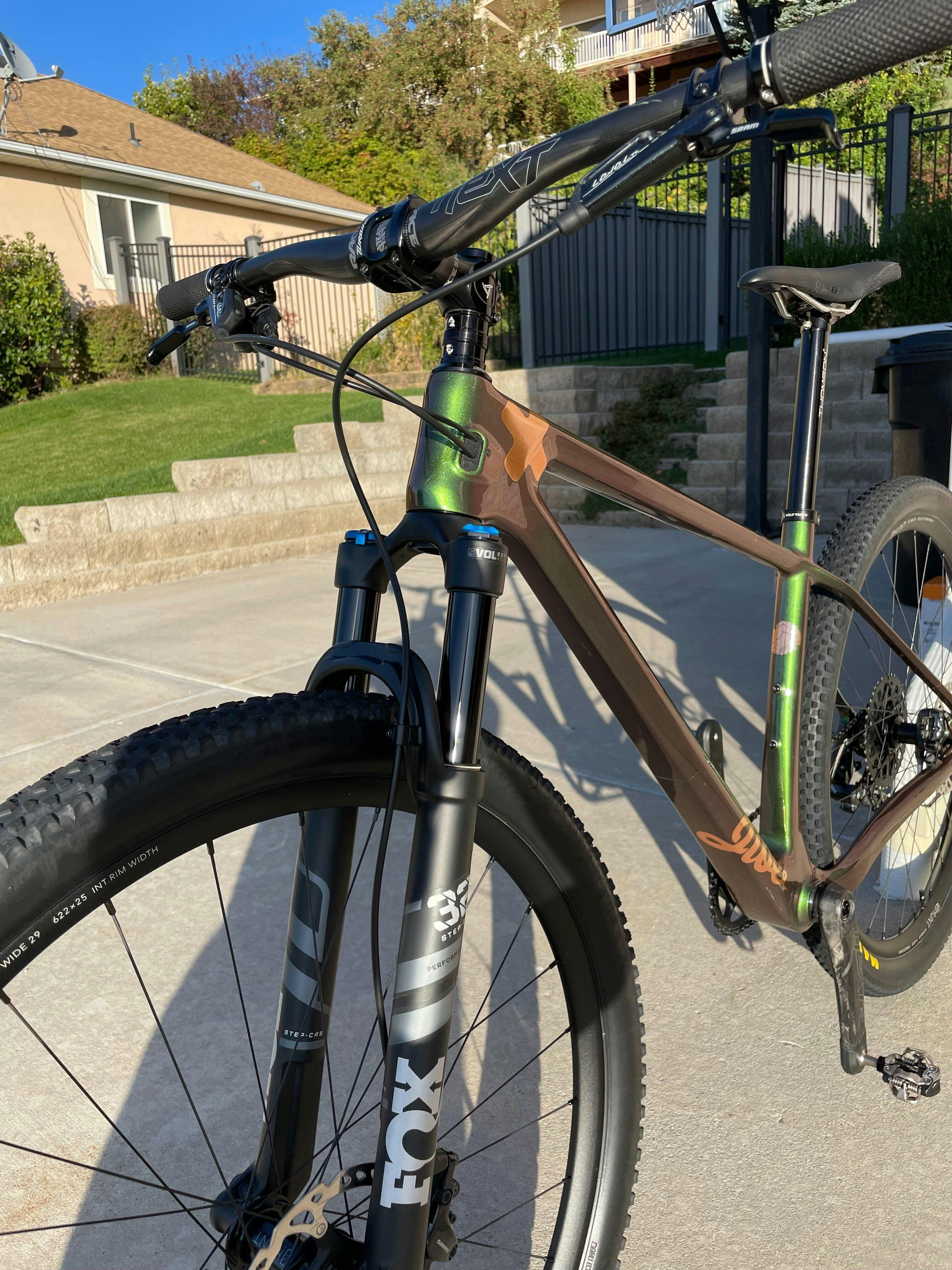

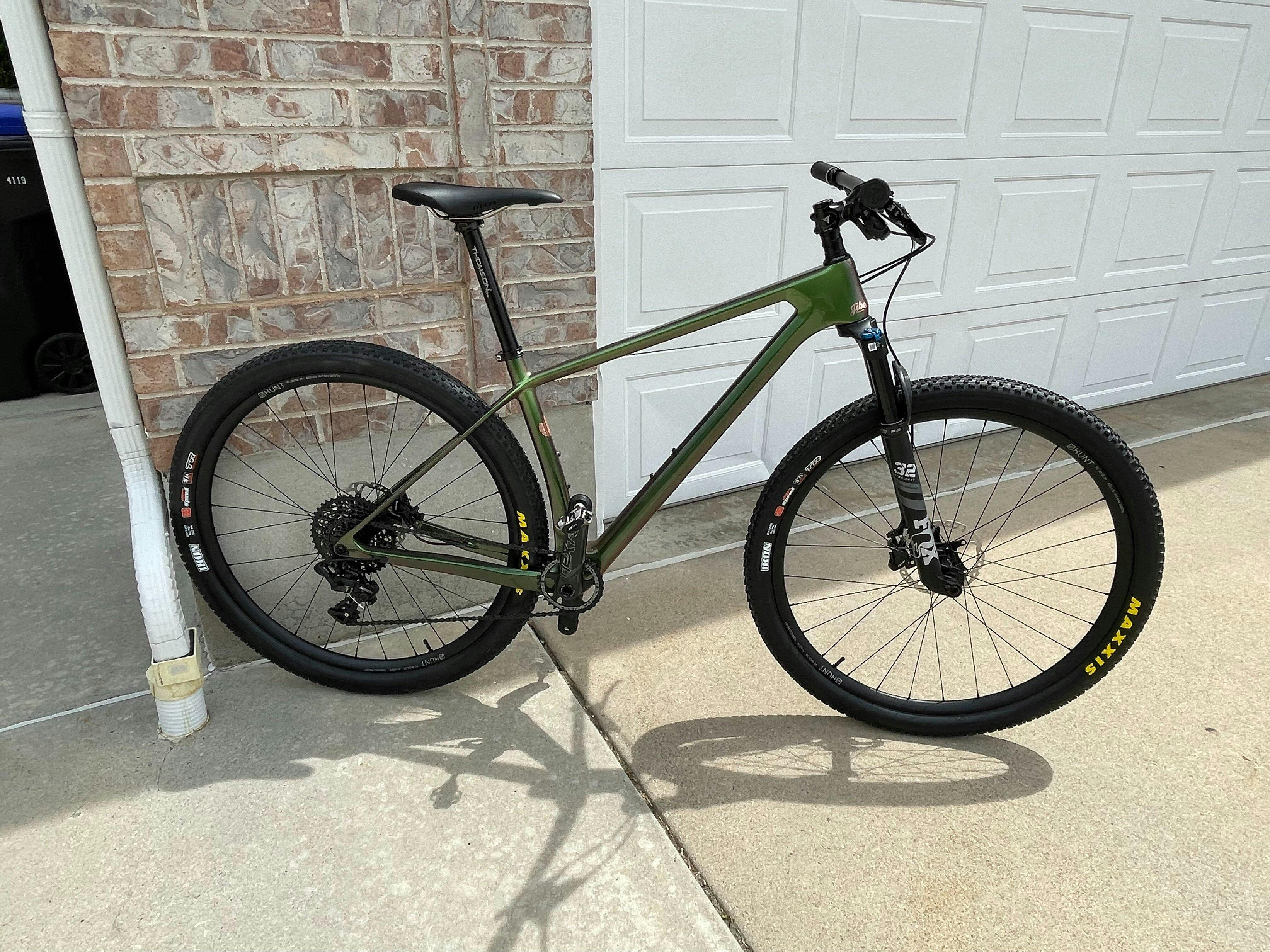

    Bought an XCHT frame for a NICA race build for my daughter. Love the frame and I am more than satisfied. Super light and the paint job is excellent. People at Jibe were great to deal with and answered the few questions I had quickly. Will be buying another Jibe XCHT frame for my son as he gets into NICA.
